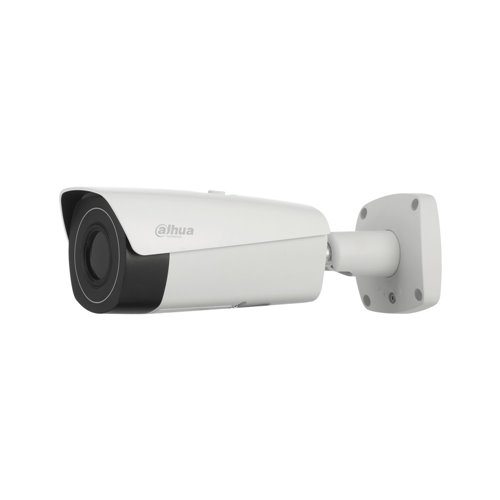

Long life sensor-Uncooled VOx Microbolometer - TPC-BF5400-TC7

Features
- Long life sensor,Uncooled VOx Microbolometer
- Effective pixels:400 x300
- Pixel size: 17 µm
- Thermal sensitivity (NETD): 40mK @ f/1.0
- Spectral range: 7 ~14 µm
- Focal distance: 7,5 mm
- Viewing angle: 52° x 40°
-Effective distance on people(1,8 m x 0,5 m): Detection (240 m), recognition (60 m), ID (30 m)
- Effective distance on vehicles (2,3m x 2,3m): Detection (720 m), recognition (180 m), ID (90 m)
- Measurement temperature supported with an accuracy of ±2°, ±2%
- Temperature measurement range: -40°C~+550°C low gain /-40°C~+150°C high gain
- Measurement mode: Point, line, area
- 19X digital zoom
- Adjustment of brightness and sharpness
- Automatic Gain Control
- Reducción de ruido 3D-DNR
- 4 ROI
- Motion detection: 4 retangular zones
-Privacy mask: 4rectangular zones
-Mirror mode
- 14 color palette (Whitehot, Blackhot, Ironrow, Icefire,Fusion, Rainbow, Globow, Iconbow1,Iconbow2, etc)
- H.264/MJPEG
- Stream 1:1280x1024, 720P (25 fps)
- Stream 2:640x512,320x256 (25 fps)
- Video output: IP / analog (optional HDCVI)
- Smart detection: tripwire, intrusion, abandoned/lost object
- Fire and alarm detection
-Audio compression: G.711a, G.711Mu, AAC
- Audio: 1 in / 1 out
- Alarm: 2 in / 1 out
- RS485 supported
- Ethernet: RJ-45 (10/100 Base-T)
- Protocols:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Compatiblewith ONVIF Profile S/G, PSIA, CGI
- Streaming method: Unicast / Multicast
-Up to 10/20users
- Compatible with - Management software SmartPSS, DSS
- MicroSD card slot up to 128GB (not included)
- Power supply: 24V AC / 12V DC / PoE
- Consumption: 10W max
-Working temperature -40°C ~+60°C
- RH: <95%
- Lightning-proof 6KV
- IP67
-Metal case
- Dimensions: 291 x 103 x 97 mm
- Weight: 1,37 Kg

Nota: The effective distance values shown are nominal values and should be used as an estimate. Consult your sales representative to find out the recommended detection distances with our Vaelsys perimeter system.
