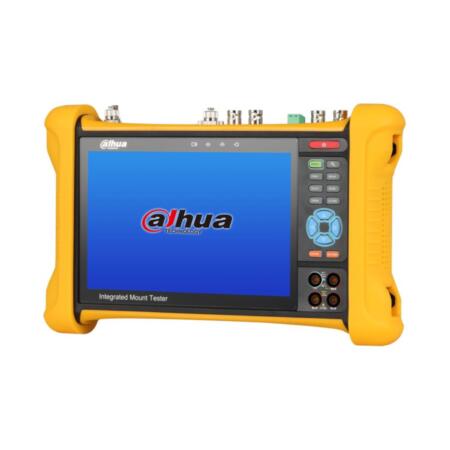

Tester TVCC multifunzione 6 in 1 Dahua - PFM906

SKU: PFM906

incl. I.V.A.€1266,92

Prezzo di vendita€1266,92

escl. I.V.A. €1013,53

Sconto totale:

IVA: €253,38

SKU: PFM906
Tester TVCC multifunzione 6 in 1 Dahua
Supporta HDTVI, HDCVI, AHD, CVBS e telecamere IP
Display LCD a colori 7"
Supporta TDR (cavo di rete/cavo coassiale), test e localizzazione di cavi UTP, cavo ottico VFL
Incorpora una batteria di grande capacità da 37 Wh, con una durata fino a 10 ore

Esaurito

torna indietro

Descrizione del prodotto: PFM906

Descrizione
Specification

PFM906

PFM906
Tester TVCC multifunzione DAHUA 6 in 1
Touch screen capacitivo retina da 7 ”IPS (1920x1200)
Supporta IP/HDCVI/HDTVI/AHD/CVBS/SDI
Ingresso/uscita HDMI
PoE, 12V DC/2A e uscita di alimentazione USB 5V/2A

Incorpora una batteria di grande capacità da 37 Wh, con una durata fino a 10 ore

Supporta TDR (cavo di rete/cavo coassiale), test e localizzazione di cavi UTP, cavo ottico VFL

Ha una funzione di multimetro digitale

Ha una funzione di test del misuratore di potenza ottica.

-in-1 multi-function CCTV tester (CVBS, CVI, TVI, AHD, SDI, IP)
7 "IPS retina capacitive touchscreen (1920x1200 pixels)
Dahua test tool for Dahua camera imaging tests, IP modification, username and password parameters, etc.
Analog camera test: Real-time video, coaxial PTZ control, RS485 control, audio test, full-screen preview and 5X digital zoom, screen capture, video recording, photo viewing and video playback
- CVI: 1080P at 25/30 ips, 4MP at 25/30 ips, 5MP / 6MP at 20 ips, 4K / 8MP at 15 ips
- TVI: 1080P at 25/30 ips, 4MP at 25/30 ips, 5MP at 20 ips
- AHD: 1080P at 25/30 ips, 4MP at 25/30 ips, 5MP at 20 ips
- CVBS: 1 channel BNC input and output, supports PAL and NTSC format (automatic detection)
- SDI: 720P at 60 ips, 1080P at 60 ips, 1080i at 60 ips (HDMI output can be used as SDI to HDMI converter and as SDI image output to monitor)
IP Camera Test: Support fast ONVIF, automatically scan network segment IP, automatically log in to display camera image, automatically modify test IP to same network segment with scanned camera IP; Displays the 4K camera image by main stream; Full-screen preview and 5X digital zoom, screenshot, video recording, photo viewing and video playback
PTZ control: Compatible with more than 30 protocols such as Pelco-D / P, Samsung, Panasonic, etc.
Network cabling test: TDR, cable search, UTP cable test
Coaxial cabling test: TDR, analog video generator
Optical wiring test: VFL (Visual Fault Locator)
Network tools: IP address scan, ping test, bandwidth test, flashing port, DHCP server, etc.
Digital multimeter (DMM)
Optical Power Meter (OPM)
Capture and analyze the command data from the control device via RS485, it can also send hexadecimal
Incorporates 35 lumen LED flashlight
Measures PoE switch voltage and displays pin configuration
8GB internal memory
Multi-language: English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, etc.

2 BNC input ports (SDI + CVI / TVI / AHD / CVBS)
1 BNC output port
1 audio input / 1 output
1 HDMI input: 720x480, 720x576, 1280x720, 1920x1080, 1024x768, 1280x1024, 1280x900, 1440x900
1 HDMI output: 1920x1080
Functional ports: TDR, OPM, VLS, RS485
MicroSD slot
3 10 / 100M RJ45 ports (LAN / PSE, PD, UTP / Scan)
Built-in 2.4G Wi-Fi module
Onvif compatibility with PTZ protocol
1 12V DC 2A input port (for charging)
7.4V, 5Ah, 37 Wh lithium polymer battery
Battery life of up to 10 hours
Battery recharge time 5 ~ 6 hours
48V DC PoE + output: Supplies temporary power to PoE cameras
12V DC / 2A power output
5V DC 2A USB power output
-10 ° C ~ + 55 ° C operating temperature
30% ~ 90% relative humidity
Plastic shell
Dimensions: 270 (W) x 160 (H) x 46 mm
Weight: 950g
