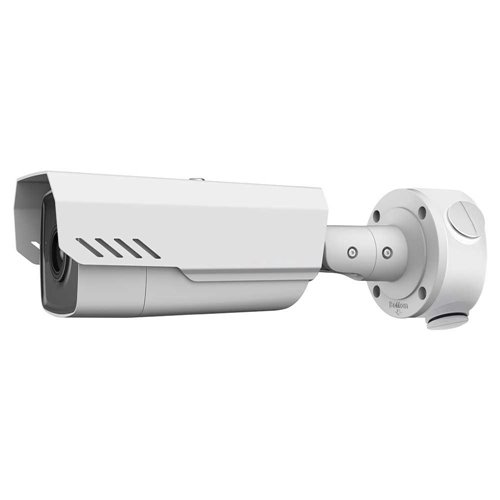

Term-77 - Camera termica personalizzata per il fuoco ...

Features
- Uncooled Microbolometer sensor
- Thermal sensibility: <50 mK f/1.0
- Spectral range: 7,5~13,5 µm
- 9 mm lens
- Horizontal viewing angle: 48°
- Vertical viewing angle: 39°
- Pixel size: 25 µm
- CIF resolution
- HA: 41 HA (optimal), 64 HA (max)
- Overheating range: 360 m (optimal), 450 m (max)
- 1m³ flame range: 40 m (optimal), 45 m (max)
- 0,4m³ flame range: 25 m (optimal), 28 m (max)
- 0,1m³ flame range: 12 m (optimal), 14 m (max)
- IP H.264/MPEG-4 & MJPEG
- Multiprotocol system via IP
- Storage temperature range: -55°C ~ +85°C
- Working temperature range: -50°C ~ +70°C
- IP66
- Shock protection: Mil-Std-810F
- Vibration protection: IEC 60068-2-27
- Power supply: Ethernet PoE 802.3af/at; 12V~38V AC / 11V~56V DC
- Consumption: 5W nominal at 24V CC, 8VA nominal at 24V AC
- Dimensions: 282 x 129 x 115 mm
- Weight: 2,2 kg

TERM-57 server (not included) with pre installed analytic software
- PC server with 23" monitor keyboard, mouse and alarm (8I/8O)
- 5 thermal channels management of industrial fire or overheating
- capacity for overheating or flame detection alerts
- Interfaz XML interface for software platform integration
- Through the interface for integration, data is sent such as the position, distance and type of target detected (overheating or flame)
- You can broadcast the video via RTSP IP H.264 encoded and 4CIF and CIF resolution
- Allows arm / disarm scheduling or change alert type (overheating or flame)
- Cartography over map
- Positioning sensor on map
- Status display of sensor and video management
- Cartography pointing
- Manual pointing
- Parameter change
- Alert management
- Video-recording management
- Preset definition and management
- Video-analytic schedule
- Mask definition and management
- Video-analytic configuration and definition
- Compatible App SR7 (available soon) with Push notification

Notes
- Optional: Start up “in situ” and tower installation (key in hand)
- Radio link not included: 2Mbps Minimum Upload / Download required per camera
- TERM-58: Annual maintenance "online" by installation (mandatory)
- Requires a personalized pre-study for each project (contact your sales person)
- Requires a TERM-71 license per camera to be added to the TERM-57 software
