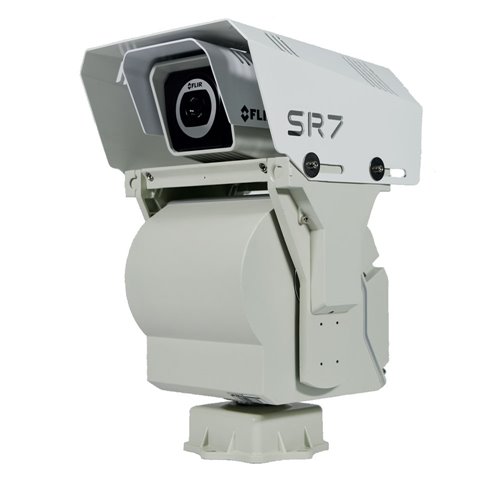

Pan-Tilt unit features
- IP66 industrial range
- 360° continuous, Pan 60°/s and Tilt 30°/s
- Power supply 24V AC (TERM-74 recommended, not included)
- Thermal or dual systems installation permited (thermal+ motorized D&N )
- Analisys based on presets (unlimited) from 5 to 10 sec per position
- Supports TERM-69 to manually manage a remote restart (recommended)
- Includes TERM-71 license for fire analysis for industrial environments
Thermal camera features
- 13 mm lens
- Horizontal veiwing angle: 34°
- Vertical viewing angle: 28°
- Pixel size: 25 µm
- CIF resolution
- Hectares: 85 HA (optimal), 133 HA (max.)
- Overheating range: 520 m (optimal), 650 m (max)
- Flame range 1m³: 57 m (optimal), 65 m (max)
- Flame range 0,4m³: 36 m (optimal), 41 m (max)
- Flame range 0,1m³: 18 m (optimal), 20 m (max)
- Video IP H.264/MPEG-4 & MJPEG
- Multiprotocol system via IP
- Working temperature: -35°C ~ +55°C
- IP66
TERM-57 server (not included) with pre instaled analytics software
- PC server with 23" monitor, mouse and alarm (8 in / 8 out)
- 5 thermal chanels management of fire or overheating industrial analytics
- Overheating and flame alert detector
- XML interface for software platform integration
- Position, distance and detected object (overheating or flame) sending via integrated interface
- You can retransmit the video over IP via RTSP encoded in H.264 with CIF and 4CIF resolutions
- Allows armed / disarmed scheduling or change of alert type (overheating or flame)
- Cartography over map
- Map sensor positioning
- Video management and status sensor display
- Targeting cartography
- Pointing Manual
- Parameter changes
- Alerts management
- Management of video-recordings
- Definition and management of presets
- Scheduling of video analytics
- Definition and management of masks
- Definition and of video-analytics
- App SR7 compatible with Push notification
- Requires TERM-71 license activation for each camera (included on Pan-Tilt systems)
Notes
- Optional: Start-up "on site" and installation of towers (turnkey)
- Radio link not included: 2Mbps Minimum Upload / Download required per camera
- TERM-58: Annual maintenance "online" by installation (mandatory)
- Requires a personalized pre-study for each project (contact your sales representative)
