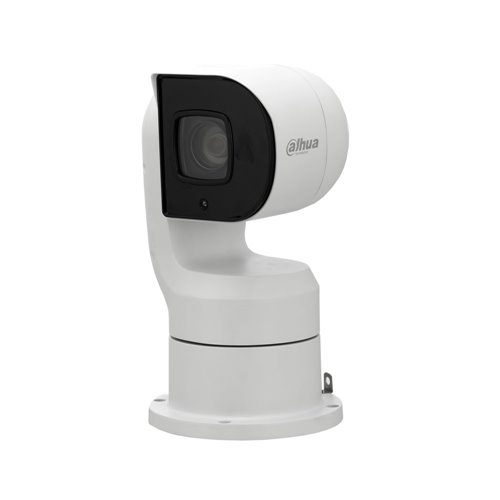

PTZ1A225-HNR-XA - Posizionatore IP con 2 megapixel stella ...

Features

    1 / 2.8 "CMOS sensor, 2 megapixel
    Powerful 25X optical zoom and 16X digital zoom
    StarLight technology
    H.265 + / H.265 / H.264 + / H.264 encoding
    1080P at 50 images per second
    Infrared illumination up to 150 meters
    Perimeter protection, face detection and autotracking
    SMD Plus and video metadata
    360 ° continuous horizontal positioner
    Degree of protection IP67, PoE +

Specs

    1 / 2,8 ”CMOS sensor, 2 megapixels
    Compression formats H.265 + / H.265 / H.264 + / H.264 / MJPEG
    Maximum resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
    Stream 1: 1080P, 1.3MP, 720P (1 ~ 50/60 ips)
    Stream 2: D1, CIF (1 ~ 50/60 ips)
    Stream 3: 1080P, 1.3MP, 720P, D1, CIF (1 ~ 50/60 ips)
    Day / night mode with removable mechanical filter
    Infrared illumination: 4 LEDs, up to 150 meters
    0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W) / 0 lux IR On
    25X Optical Zoom: 4.8 ~ 120mm
    Viewing angle: 61 ° ~ 2.8 ° (H), 33.2 ° ~ 1.7 ° (V), 67.3 ° ~ 3.9 ° (D)
    Automatic, semi-automatic and manual focus control
    Automatic iris control
    16X digital zoom
    White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Street Light
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    True WDR 120 dB
    2D / 3D-DNR noise reduction
    Digital defog
    Electronic Image Stailizer (EIS)
    Areas of interest (ROI)
    Video sensor
    Privacy mask of up to 24 zones (up to 8 zones in one view)
    Video metadata: Detection of motorized vehicles, non-motorized vehicles, human faces and human bodies; supports high-quality snapshot tracking, image capture and upload
    Perimeter protection: Line crossing, intrusion, abandoned / lost objects; Supports alarm activation by target type (person or vehicle) and by tracking link
    Supports autotracking
    Supports face detection
    Horizontal positioner: 0 ° ~ 360 ° continuous
    Vertical positioner: -90 ° ~ + 90 °, autoflip 180 °
    Manual speed: 0.1 ° ~ 120 ° / sec. (H), 0.1 ° ~ 75 ° / sec. (V)
    Preset speed: 160 ° / sec. (H), 110 ° / sec. (V)
    300 presets
    5 patterns, 8 rounds of up to 32 presets each, 5 scans
    DH-SD and Pelco-D / P protocols with automatic recognition
    1 audio input / 1 output
    2 inputs / 1 alarm output
    MicroSD card slot up to 256GB (card not included)
    Network interface: RJ45 (10 / 100Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    ONVIF (Profile S / G) compliant, CGI
    Unicast / Multicast streaming method
    Up to 20 users
    Remote viewing through IE7, Chrome 42, Firefox 52 and Safari browsers
    Smart PSS, DSS, DMSS, Easy4ip, IVSS management software
    Compatible with IOS and Android mobile devices
    Power supply: 12V DC / 4A (± 10%)
    Consumption: 14W, 23W with IR and PTZ illumination
    Supports PoE +
    -40 ° C ~ + 70 ° C operating temperature
    Relative humidity: ≤95%
    Degree of protection IP67
    Lightning-proof 8KV
    Dimensions: 161 (W) x 291.5 (H) 153.4 mm
    Weight: 3.6 kg
    Includes power supply
