Specifications

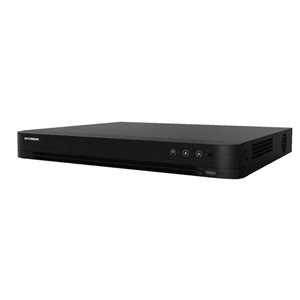

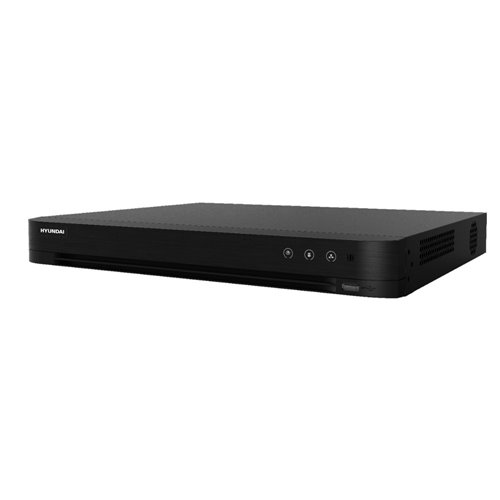

ZVR 5 in 1 4-channel format H.265 +, H.265, H.264 +, H.264
5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
4 BNC inputs (supports coaxitron):
HDTVI: 4MP @ 25 ips, 3MP @ 18 ips (channel 1 only), 1080P @ 25 ips, 720P @ 25/50 ips
HDCVI: 4MP, 1080P, 720P @ 25 ips
AHD: 4MP, 1080P, 720P @ 25 ips
CVBS: Analog: 960H
Normal IP: 1 IP input (up to 5 inputs bypassing BNC) at 6MP
Enhanced IP: 2 IP inputs (up to 6 inputs bypassing BNC) at 4MP
Simultaneous HDMI and VGA (1080P) outputs
BNC output (1.0 Vp-p)
Two-way audio
1 RCA input / 1 RCA audio output
4 channels of audio over coaxial
Recording resolution: 4M-N, 3MP, 1080P, 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF
Main stream with 1080P Lite mode disabled:
Stream 4MP: 4M-N (15 ips), 1080P Lite, 720P, WD1, 4CIF, VGA, CIF (25 ips)
Stream 3MP: 3MP, 1080P, 720P, VGA, WD1, 4CIF, CIF (15 ips)
Stream 1080P: 1080P, 720P (15 ips), VGA, WD1, 4CIF, CIF (25 ips)
Stream 720P: 720P, VGA, WD1, 4CIF, CIF (25 ips)
Main stream with 1080P Lite mode activated:
4M-N, 3MP (15 ips), 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25 ips)
Secondary stream: WD1, 4CIF (12 ips), CIF (25 ips)
4-channel synchro playback
Motion detection with people / vehicle analysis: Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify people and vehicles, and greatly reduce false alarms caused by objects such as leaves and lights; Quick search by object or event type is supported
Up to 2 perimeter protection channels with human / vehicle analysis
Internal capacity for 1 SATA HDD up to 10TB (sold separately)
Self-adaptive RJ45 (10 / 100M) Ethernet network interface
Network protocols: TCP / IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
ONVIF compliant
Remote access for up to 32 users
Connectable to Wifi network via Wifi dongle via USB interface
Remote access through iPhone / iPad, Android devices
Multi browser compatibility: Chrome, Firefox, Safari, IE
P2P in the cloud, DDNS DEMES, Push and channel zero
RS48 half-duplex port
2 USB 2.0 ports
Power supply: 12V DC, 1.5A
Consumption: ≤18W
Operating temperature: -10 ° C ~ + 55 ° C
Relative humidity: 10 ~ 90%
Dimensions: 315 × 242 × 45mm
Weight: ≤1.16 kg
