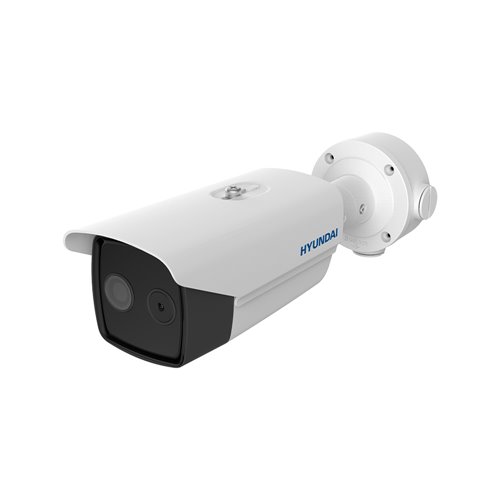

HYU-746 - Hyundai Nextgen Bullet termico + VI ...

SKU: HYU-746

incl. I.V.A.€973,29

Prezzo di vendita€973,29

escl. I.V.A. €778,63

Sconto totale:

IVA: €194,66

Hyundai Nextagen Thermal Bullet + Visible Camera serie termica con illuminazione IR di 40 m, per esterno. Fotocamera visibile con 1 / 2,8 "CMOS di 2 mp. Lente visibile da 6 mm 6 mm. Telecamera termica con risoluzione 160 x 120, obiettivo termico da 6,2 mm. Rilevamento di persone fino a 182 metri e veicoli fino a 559 metri. WDR digitale, 3D-DNR . Rilevamento intelligente (VCA). Uscita video IP / analogico. Audio: 1 ingresso / 1 uscita. Allarme: 2 ingressi / 2 uscite RS485 PORT SLOT MicrotSD ONVIF, API, ISAPI. POUSCONO DI LUCINO 6KV. IP66 12V DC POE

+20 rimasti in magazzino

torna indietro

Descrizione del prodotto: HYU-746

Descrizione

Thermal camera

HYU-746
FPA sensor (focal plane matrices) not cooled with vanadium oxide
Thermal resolution of 160x120 (the output image is 320x240)
Pixel Interval: 17μm
Thermal sensitivity (NETD): <40 mk (@ 25 ° C, f / 1.1)
Spectrum range: 8 μm ~ 14 μm
Focal length (thermal): 6.2 mm
Viewing angle (thermal): 25 ° x 18.7 °
Minimum focusing distance of 0.6 meters
Effective distance in people: Detection (182 m), recognition (46 m), identification (23 m)
Effective distance in vehicles: Detection (559 m), recognition (140 m), identification (70 m)
15 adjustable color palettes, 3D-DNR
Dynamic detail enhancement
Supports 4 types of VCA rules (intrusion, line crossing, region input and region output), maximum 8 rules
Temperature range from -20 ° C ~ + 150 ° C
Temperature accuracy of ± 8 ° C
Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 regions and 1 line)
Supports 10 fire detection points

Visible camera

HYU-746
Image sensor (visible camera) CMOS 1 / 2.8 Progressive Scan 2 MP
Effective pixels: 1920 x 1080
40 meter IR illumination
Minimum illumination: 0.002 lux F1.5 (color) / 0.0002 lux F1.5 (B/W) / 0 lux IR On
Focal length (visible lens): 6 mm
Viewing angle (visible lens): 53 ° x 30 °
Removable mechanical filter
Digital WDR
Supports merging of bi-spectrum images, image preview in image and image change

IP communication and integration

HYU-746
Compression formats: H.265 + / H.265 / H.264 / H.264 + / MJPEG (baseline / main / high profile)
Stream 1 thermal camera: 160x120 at 25 fps (the output image is 320x240)
Stream 2 thermal camera: 160x120 at 25 fps (the output image is 320x240)
Stream 1 visible camera: 1080P / 1.3MP / 720P at 25 fps
Stream 2 visible camera: D1 / CIF / QCIF at 25 fps
Audio compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM
1 RJ45 10 / 100M auto-adaptive port
Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Up to 20 simultaneous visualizations
Up to 32 users, 3 levels: administrator, operator, user
Compatibility API, ONVIF, API, ISAPI, and third-party management gateway
Compatible with IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac) browsers
Alarm: 2 inputs / 2 outputs
Audio: 1 input / 1 output
Reset button
MicroSD / SDHC / SDXC card slot (up to 128 GB), with support for manual or alarm recording
BNC output 1.0V [p-p] / 75Ω (PAL / NTSC)
RS485 port

Electric and environmental

HYU-746
Power supply: 12V DC, PoE (802.3af, class 4)
Consumption: max. 12W
Operating temperature of -40 ° C ~ + 60 ° C
Relative humidity: ≤90% (without condensation)
IP66 protection degree
6KV lightning-proof

Physical characteristics

HYU-746
Metal housing
Dimensions: 113.5 (W) x 114.7 (H) x 352.4 mm
Weight: 1.5 kg
Includes wall bracket and tube base

Note: The actual distance values ??shown are nominal values ??and should be used as an estimate. Check with your salesperson for the recommended detection distances with our Vaelsys perimeter system.
